QR-Code Integration in MFG

Objective

Implement QR code-based tracking across all inventory transactions without altering the existing stock flow. This will improve traceability and stock reconciliation. seprate log for subtransaction disable grnids, what is grns got deleted

📦 Handling Existing Stock

Step 1: Determine the Number of Packets per Item

For each item in the inventory, we need to determine how many physical packets or units are currently available. This step is essential as the QR codes will be generated and assigned based on these individual packets.

Step 2: Calculate Closing Stock Quantity as of 30-Sep-2025

Before QR code tracking begins (starting from 1-Oct-2025), we must calculate the closing stock for each item as of midnight on 30-Sep-2025. This stock quantity will be treated as the opening balance in the new QR-based system.

Step 3: Insert Records into New QR Table

After calculating the stock quantities:

• For each item, we will insert a record into a new QR stock table currently taking as QRStock

• This table will contain only:

  • Unit

  • Stage

  • Brand

  • Item State

  • Qty

  • Store

  • Item Id

  • Notes

  • The balance quantity of the item as on 30-Sep-2025

  • Year Label

  • No of Packtes

  • TrnidNewly generated S-TrnIds

  • Ind, docno, docdate, PartyId that we can exclude in this new table

---creating mfg stock table
CREATE TABLE QRStock
(
    id INT PRIMARY KEY IDENTITY(1,1),
    unitcode     NVARCHAR(2),
    stagecode    NVARCHAR(2),
    brandid      NVARCHAR(3),
    itemstate    NVARCHAR(1),
    qty          NUMERIC(14,3),
    storecode    NVARCHAR(2),
    itemid       NVARCHAR(50),
    notes        NVARCHAR(250),
    yearlabel    NVARCHAR(7),
    NoOfPackets  INT
    Trnid        NVARCHAR(7)
);

----insert from stock_qty
INSERT INTO QRStock (unitcode, stagecode, brandid, itemstate, qty,
storecode, itemid, notes, yearlabel, noofpackets)
SELECT unitcode, stage, brandid, itemstate, qty,
storecode, itemid, notes, yearlabel, @noofpackets
FROM stock_qty;

-- need to add query for updating S-TrnIds

---stock index
SELECT Unitname, stagename, brandname,
IIF(itemstate = 'R', 'Rejected', 'Good'), qty, storename,
itemname, notes, yearlabel, noofpackets,trnid
FROM QRStock M
LEFT JOIN company1 C1 ON M.unitcode = C1.UnitCode
LEFT JOIN Stages S ON M.stagecode = S.stage
LEFT JOIN brandmst B ON M.brandid = M.brandid

Step 4: Generate and Print QR Codes

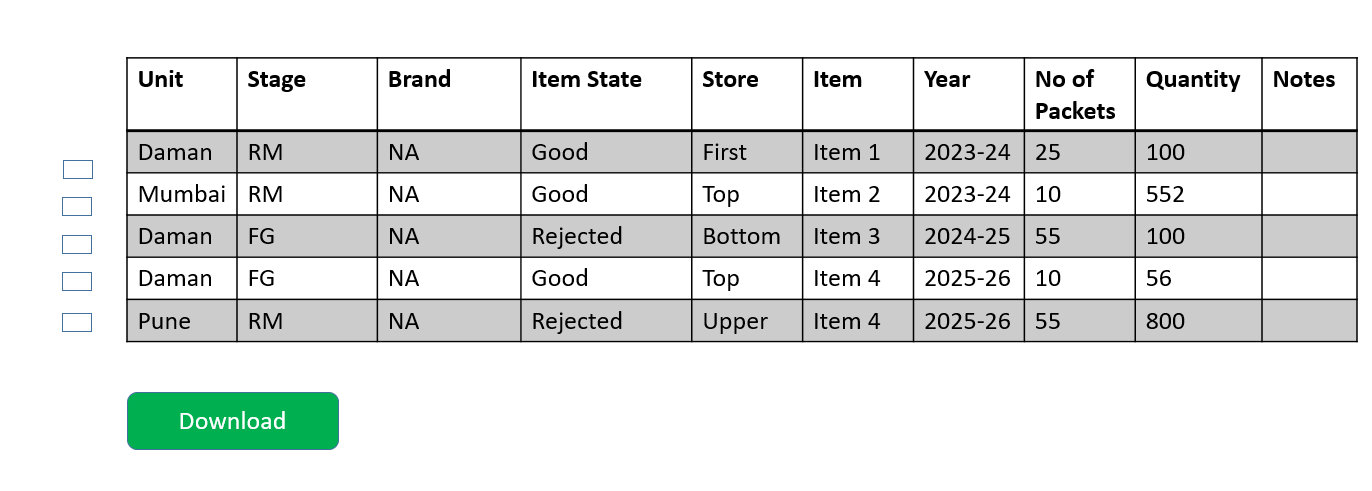

• We will give them an Index Page where all records from QRStocks will be there
• On Index page we will have a download button
• We will give them checklist on Index page, they have to select number of records and then Print
• When they will select the records at that time as per no of packets we will insert record in MFGSubTrn and generate TrnId,SubTrnId and then Print the records
• Once QR is printed we will not allow them to Print again


Validation for Stock Printing

• If for the selected records no of sub trnids exceeds nore than 300 then we can give validation
• If they are clicking on download and no records they have selected then we can validate
• If Selected records are already printed then we can validate

Post-QR Implementation Transaction Flow

General Rules

• TRN ID Creation: Only at line level for:

  • GRN (Raw Material receipt) → G-TRNID
  • Jobwork IN (without GRN) → J-TRNID
  • IIRS Receipt (FG back to store) → M-TRNID

• No New TRN IDs: For SRN (Sales Return Note), DNCN (Debit/Credit Notes), Invoice → only update existing TRN IDs.

• Sys Parameters:

  • Only insert in MFGSubTrn if EnableQRCode = Y.
  • Update stock only if UpdateStockQty = Y.

• Data Recorded in MFGSubTrn:

  • Trn Id
  • Sub Trn Id
  • ActualQty (original qty)
  • BalanceQty (remaining qty after issues/returns)
  • IsPrinted

1. GRN (Raw Material Inflow)

The journey always starts with Goods Receipt Note (GRN) when raw materials are purchased. Each GRN line creates a G-TRNID only if sysparameter is on and

• What happens:
  • System asks for Packet Nos at line level creation
  • If GRN Qty is 1025 and no of packets is 11 so there will 11 subtrnids, 10 with 100 qty and 1 with 25 qty
  • System generates TRN ID: G-000001 (line level). and stores it in GRN1 table
  • Entry inserted into MFGSubTrn.
  • ActualQty = quantity received.
  • BalanceQty = available qty (changes when consumed, returned, or adjusted).
  • If Service GRN → no TRN ID.
  • Rejected Qty we will no insert in MFGSubTrn so if Accepted qty is 100 and received is 200, then only accepted qty will get inserted in MFGSubTrn
  • Once QA is done only then label can be printed

Example 1:

Vendor supplies 1000 steel rods.

2. IIRS (Internal Issue & Return Slip)

IIRS is the heart of internal stock control. It has two directions: Issue (O-type) and Receipt (I-type).

(a) IIRS Issue (O-type)

• What happens:

  • RM issued to shopfloor (consumption for manufacturing).
  • System reduces BalanceQty of the linked G-TRNID.
  • No new TRN ID created.
  • Ensures traceability: which GRN lot got consumed.

Example 2 (Issuing 800 RM units):

(b) IIRS Receipt (I-type)

• What happens:

  • Shopfloor returns finished goods (FG) or semi-FG to store.
  • System generates new TRN ID: M-000001.
  • Represents FG inflow from production.

Example 3 (FG Receipt):

Out of 800 RM issued, production yields 750 FG.

3. Jobwork (Subcontracting Flow)

Jobwork handles subcontractor processes.

(a) Jobwork OUT

• What happens:

  • RM issued to subcontractor.
  • Stock reduced from linked G-TRNID.
  • No new TRN created.

Example 4 (Sending 100 units to jobworker):

(b) Jobwork IN (without GRN)

• What happens:

  • Finished items received from subcontractor.
  • New TRN ID with prefix J-000001 created.
  • Need to ask no of packets here also if ActualQty is 150 and no of packets is 2 then it will

• Example 5 (Receiving 150 items from jobworker):

4. Invoice (FG Outflow / Sales)

Invoices represent sale of finished goods. When Invoice is created we will store M-Trnids from IIRS in them.

• What happens:

  • FG stock reduced from linked M-TRNID.
  • Traceability: which batch of FG was sold.

Example 6 (Selling 700 FG units):

👉 After invoice, only 50 FG left in store.

5. SRN (Sales Return Note)

SRN handles adjustments. No fresh TRN ID is created. It updates BalanceQty of existing TRN IDs.

Cases:

1. Received From Party (Jobwork) → increase in J-TRNID.
2. Received From Party (GRN) → increase in G-TRNID.
3. Return to Vendor → decrease in M-TRNID.
4. Found OK / Scrap / Repair → adjust M-TRNID.

6. DNCN (Debit / Credit Notes)

Debit and Credit Notes adjust stock financially and quantitatively. They don’t create new TRNs — only modify balances of existing TRNs.

Rules:

• SDN (Sales Debit Note) → reduce BalanceQty of M-TRNID.
• SCN (Sales Credit Note) → increase BalanceQty of M-TRNID.
• PDN (Purchase Debit Note) → reduce BalanceQty of G-TRNID.
• PCN (Purchase Credit Note) → increase BalanceQty of G-TRNID.

Example 9 Customer returns 100 FG (due to quality issue).Created a Sales Credit Note

Negative Stock Index

In QR system, negative stock should not exist anymore, because every issue must point to a TRN and cannot exceed its balance.

Actual Changes in Branch (QR Code Stock Flow)

GRN (Goods Receipt Note)

1. Schema Change

   • Add a column G-TrnId in GRN1 table (line-level unique transaction reference).

2. UI Change – GRN1 Create

   • Add a field “No. of Packets” (enabled only if EnableQRCode = Y and the GRN is not a Service GRN).

3. Logic for QR Packets

   • If Qty = 1025 and No. of Packets = 11, then system generates 11 SubTrnIds:

     • 10 packets × 100 Qty each.
     • 1 packet × 25 Qty.

4. Insertion in MFGSubTrn

   • On GRN save, system generates G-TrnIds and inserts them in MFGSubTrn.

5. Rejected Qty Handling

   • If Rejected Qty is there then there will no insertion in MFGSubTrn

6. QR Code Print

   • Provide option to Print QR in:

     • GRN Details Page (print all packets of a GRN).
     • GRN Line Details Page (print individual packet QR).

7. Pending / Deletion Rule

   • If a GRN is deleted →

     *If G-TrnId is not linked only then we will allow to delete GRN and also delete in MFGSubTrn

IIRS (Internal Issue & Return Slip)

1. Schema Change

   • Add a column M-TrnId in Mirs1 table.

2. Material Movement – Issue (O-Type)

   • Line-level Import Option: Users upload Excel containing scanned GRN QRs.
   • Import Option page will ask for Machine, Process, Shift selection.
   • Stage, Item, Brand, Store will be auto-fetched using G-TrnIds.

3. Updating Stock

   • On Import → system reduces BalanceQty in MFGSubTrn

4. Multiple Imports Allowed

   • For Issue, allow Import even if line records already exist.

5. Material Movement – Receipt (I-Type)

   • For Receipt, user can still create records manually like before
   • Adding a field “No. of Packets” in case of Receipts
   • System generates M-TrnIds and inserts them into MFGSubTrn.

6. QR Code Print

   • Provide option to Print QR in:

     • IIRS (Mirs) Details Page.
     • Line-level Details Page.

7. Pending / Deletion Rule

   • If IIRS is not authorized, still allow stock movement (important for QR traceability).
   • If IIRS is deleted before authorization → update/reverse related stock in MFGSubTrn.

Jobwork

1. Schema Change

   • Add a column J-TrnId in JobWork1 table.

2. Jobwork OUT

   • On OUT → system reduces BalanceQty from related G-TrnIds for all lines along with subtransactions.

3. Jobwork IN (without GRN)

   • Adding a field “No. of Packets” in case of Jobwork In(Without GRN)
   • On IN → system generates new J-TrnIds and inserts into MFGSubTrn.

4. QR Code Print

   • Provide QR print option in:

     • Jobwork Details Page.
     • Jobwork Line Details Page.

5. Pending

   • For deletion (reverse stock like GRN/IIRS).

SRN (Sales Return Note) need to discuss for SRN and DNCN

1. Update Rules in MFGSubTrn:

   • Received from Party (Jobwork) → increase J-TrnId
   • Received from Party (GRN) → increase G-TrnId
   • Return to Vendor → reduce M-TrnId
   • Found OK / Scrap / Repair → adjust M-TrnId

   Import Option only if stocks needs to be updated

   • In SRN Import page, we can give then options for transaction Type
   • They will upload the scanned QR excel we can fetch Item, qty, brand,state… other details and create Record for SRN
   • After Importing need to add command for updating records in MFGSubTrn
   • Need to update even when they Modify Records and update actual qty

2. Pending

   • Deletion handling.

DNCN (Debit / Credit Notes)

1. Update Rules in MFGSubTrn if Update Stock is selected as Yes

   • SDN (Sales Debit Note) → reduce BalanceQty of M-TrnId
   • SCN (Sales Credit Note) → increase BalanceQty of M-TrnId.
   • PDN (Purchase Debit Note) → reduce BalanceQty of G-TrnId.
   • PCN (Purchase Credit Note) → increase BalanceQty of G-TrnId.
   • In Dncn we are asking if it is partial or Full, in case of Full for all the lines TrnIds along with Subtransactions will get updated in case of partial it will update only for one line.

2. Pending

   • Deletion handling.

Invoice

1. UI Enhancement

   • In InvoiceCreateFromOrder:
   • In InvoiceCreateFrom Order we will add a textbox like Daily Production Monitor and as soon as M-Trind is scanned Stage and Store will be fetched
   • In Invoice1Create:
   • In Invoice1Create Order we will add a textbox like Daily Production Monitor and as soon as M-Trind is scanned Stage,State,Store, No of Packets will be fetchedNeed to ask for packing slip

2. Stock Update

   • On Invoice Save → system reduces BalanceQty in related M-TrnIds.

3. Pending

   • Need to think more about how we allow to link Partial M-Trnids also.
   • Deletion Logic

Other Changes

1. Log Table

   • Create MFGSubTrnLog to record every change in MFGSubTrn:

2. Print Service

   • A single Print method for all modules (like DPR) to generate QR labels.

3. Update Service

   • A single Update method for handling stock updates in MFGSubTrn (instead of writing module-specific queries).

Physical Stock Verification

• Physical Stock Verification will be more easier after QR
• User just have to scan the QR and all the details will automatically appear in Excel
• They have to enter separately for loose packets
